The Rektor LNG company was founded in 2004 and specializes in the production of cryogenic vessels for gas transportation. We are located in Vodnjan, Croatia, where our factory is located on a total area of 78,000 square meters.

In cooperation with renowned world manufacturers, designers, and engineers, Rektor LNG has developed the following projects:

  • LNG ISO 40ft container tank
  • Hydrogen ISO 40ft container tank
  • Hydrogen ISO 20ft container tank
  • GAS6 ISO 40ft container tank
  • GAS6 ISO 20ft container tank

The special features of the Rektor's LNG ISO container tank are great durability, solid construction and most importantly, special insulation that extends the holding time up to 300 days without any loss of gas.

All listed products have been designed, certified, and approved and satisfy all relevant well-known standards.

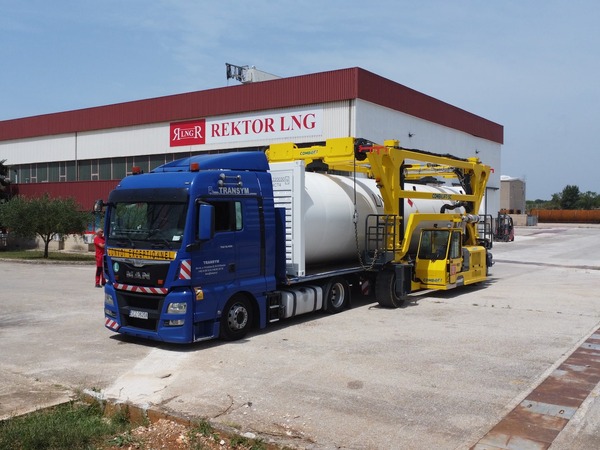

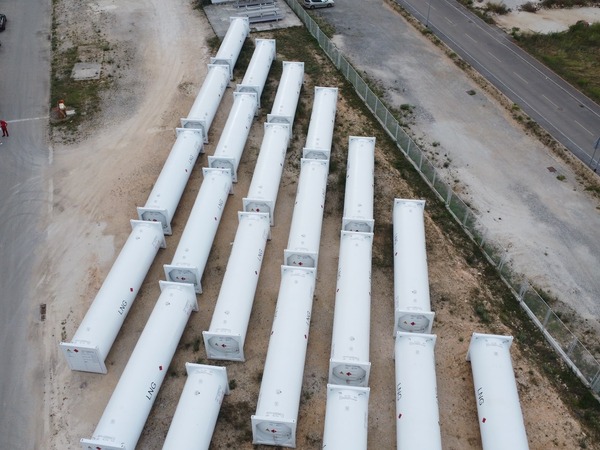

LNG

ISO 40ft container tank

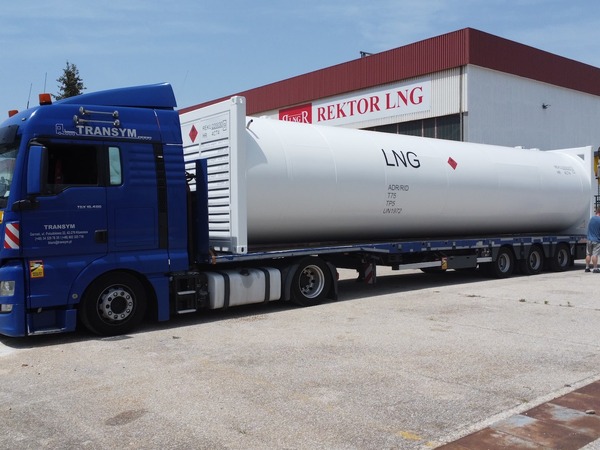

LNG ISO 40ft tank container satisfies all relevant well-known standards for such demanding applications such as TPED, ADR and EN 13530 and ASME Code VIII div1.

Due to its unique characteristics, strength and special insulation that enables a holding time up to 186 days without any gas loss, Rektor's LNG ISO 40' cryogenic tank container is ideal to be used for the transport of LNG to remote areas to supply satellite plants, gas filling stations, villages, schools, hospitals, etc.. It can be a part of a virtual pipeline or just used as storage.

Design and type have been approved under the Type Approval Certificate issued by the Classification Society Bureau Veritas, Paris and covered by their certificates:

  • Approval Certificate of Type of Portable Tank BVCT 1370282/V Rev0
  • RID/ADR Prototype Agreement Certificate of Portable Tank No. F/7219

On completion the prototype of the Cryogenic LNG Container has been exposed to rigorous testing in Piacenca Collaudi & Manutenzioni, under the Test Report No. 348/13. Testing was successfully passed with no permanent plastic deformation (even allowed to some extent).

REKTOR LNG 40' ISO container tank satisfies the following regulations:

  • ASME VIII div1
  • EN 13530-2/A1
  • The International Maritime Dangerous Goods Code (IMDG)
  • International Regulations for the carriage of dangerous goods by rail (RID)
  • European Agreement Concerning the International Carriage of Dangerous Goods (ADR)
  • International Convention for Safe Containers (CSC)
  • Customs Convention for Safe Containers (CCC)
  • International standard: ISO 668:2013

Technical data for LNG ISO 40ft container tank

Type of container

40' ISO tank, UN T75

The maximum allowable gross weight

36,600 kg

The maximum payload

16,100 kg

Allowable stacking weight

192,000 kg

The maximum allowable working pressure

0.6 Mpa

Operating temperature range

-40 to +50°C

Holding time

186 days

Materials - Bottom

Stainless steel vessel, X6CrNiTi18-10
Low alloy steel vessel , P355NL2

Materials - The cylindrical portion

Stainless steel vessel, X6CrNiTi18-10
Low alloy steel vessel , P355NL2

End frames and struts low alloy steel, grade P355J2H
Corner fittings carbon-manganese steel

Hydrogen & Helium

ISO 40ft & ISO 20ft container tanks

In the future, hydrogen will play an important role in the decarbonization of the national economy, especially in sectors that currently have few alternative technological options and where electrification could lead to significant costs. Hydrogen is compatible with current consumption patterns and enables the connection of electrical and thermal systems flexibly, highlighting the complementarity and synergy between electrical networks and gas systems.

For this reason, the Rektor LNG company developed the Hydrogen ISO container tank project for hydrogen transport.

The tank is characterized by special insulation that enables a tank holding time up to 60 days without discharging the load at maximum filling.

With carefully selected materials and robust construction, the tank allowes stacking weight  of 192,000 kg on the tank, which directly affects the safety of the environment and everything around the Hydrogen ISO container tank.

The tank is primarily used for the transport of hydrogen using multimodal transport and has been built in accordance to: TPED, ADR , EN 13530 and ASME VIII div1 .

Some of the purposes for which the Hydrogen 40ft ISO container tank can be used are storage for hydrogen, it can be used for supplying gas for schools, hospitals, buildings, etc., and as a tank for ships that use hydrogen as fuel etc.

Technical data for Hydrogen ISO 40ft container tank

The capacity of the vessel

36.49 (%) m3

Dimensions L x W x H

12192x2438x2591 mm

Max. allowable gross weight

30480 kg

Max. load for liquid Hydrogen UN 1966

2467 kg

Max. load for liquid Helium UN 1963

4343 kg

Max. degree of filling for liquid Hydrogen

34.67 (95) m3 (%)

Max. degree of filling for liquid Helium

34.67 (95) m3 (%)

Mass of empty container

12520 kg

Allowed stacking weight

192000 kg

Working pressure

0.6 MPa

Design pressure

0.76 MPa

Test pressure

0.91 MPa

The pressure of the opening of the safety valve

0.61 MPa

Design temperature, min.

-269 ºC

Design temperature, max.

50 ºC

Outer vessel outside diameter

2412 mm

Outer vessel shell thickness

6 mm

Outer vessel dished end thickness

8 mm

Inner vessel outside diameter

2112 mm

Inner vessel shell thickness

6 mm

Inner vessel dished end thickness

8 mm

Outer and inner vessel material

AISI 304

Design codes

ASME VIII div. 1, EN13530-2

Technical data for Hydrogen ISO 20ft container tank

Prototype

Concept 6

The capacity of the vessel

15.27 (%) m3

Dimensions L x W x H

6058x2438x2591 mm

Max. allowable gross weight

30480 kg

Max. load for liquid Hydrogen UN 1966

1030 kg

Max. load for liquid Helium UN 1963

813 kg

Max. degree of filling for liquid Hydrogen

14.51 (95) m3 (%)

Max. degree of filling for liquid Helium

14.51 (95) m3 (%)

Mass of empty container

6970 kg

Allowed stacking weight

192000 kg

Working pressure

0.6 MPa

Design pressure

0.76 MPa

Test pressure

0.91 MPa

The pressure of the opening of the safety valve

0.61 MPa

Design temperature, min.

-269 ºC

Design temperature, max.

50 ºC

Outer vessel outside diameter

2412 mm

Outer vessel shell thickness

6 mm

Outer vessel dished end thickness

8 mm

Inner vessel outside diameter

2112 mm

Inner vessel shell thickness

6 mm

Inner vessel dished end thickness

8 mm

Outer and inner vessel material

AISI 304

Design codes

ASME VIII div. 1, EN13530-2

GAS6

ISO 40ft & ISO 20ft container tanks

Gas6 ISO container tank is designed as a multifunctional ISO container tank that will support the transport of 6 different gases and eliminate the need to use multiple containers for gas transfer. This opens completely new possibilities for the ISO container tank owner.

Due to the special design, valve system and special insulation, the GAS6 ISO container tank is certified and approved for the transport of the following gases:

  • Nitrogen
  • Methane
  • Oxygen
  • Argon
  • Ammonia
  • Etilen

Depending on the type of gas transported inside the GAS6 ISO container tank, the holding time varies from 40 to 300 days without losing any gas in that period.

Technical data for Gas6 ISO 40ft container tank

The capacity of the vessel

36.49 m3

Dimensions L x W x H

12192x2438x2591 mm

Max. allowable gross weight

30480 kg

Max. load for Liquid Methane UN 1972

14650 kg

Max. load for Liquid Oxygen UN 1073

18616 kg

Max. load for Liquid Nitrogen UN 1977

18616 kg

Max. load for Liquid Argon UN 1977

18616 kg

Mass of empty container

10800 kg

Working pressure

0.6 MPa

Design pressure

0.76 MPa

Test pressure

0.91 MPa

Design temperature, min.

-196 ºC

Design temperature, max.

50 ºC

Outer vessel outside diameter

2412 mm

Outer vessel shell thickness

6 mm

Outer vessel dished end thickness

8 mm

Inner vessel outside diameter

2112 mm

Inner vessel shell thickness

6 mm

Inner vessel dished end thickness

8 mm

Outer and inner vessel material

AISI 304

Design codes

ASME VIII div. 1, EN13530-2

Technical data for Gas6 ISO 20ft container tank

The capacity of the vessel

15.27 m3

Dimensions L x W x H

6058x2438x2591 mm

Max. allowable gross weight

30480 kg

Max. load for Liquid Methane UN 1972

6130 kg

Max. load for Liquid Oxygen UN 1073

16566 kg

Max. load for Liquid Nitrogen UN 1977

11727 kg

Max. load for Liquid Argon UN 1977

20309 kg

Mass of empty container

5960 kg

Working pressure

0.6 MPa

Design pressure

0.76 MPa

Test pressure

0.91 MPa

Design temperature, min.

-196 º C

Design temperature, max.

50 ºC

Outer vessel outside diameter

2412 mm

Outer vessel shell thickness

6 mm

Outer vessel dished end thickness

6 mm

Inner vessel outside diameter

2112 mm

Inner vessel shell thickness

6 mm

Inner vessel dished end thickness

8 mm

Outer and inner vessel material

AISI 304

Design codes

ASME VIII div. 1, EN13530-2

Telemetry

Advanced Container Monitoring and Tracking System

Remote tank level monitoring enables companies to optimize their tank utilization by tracking levels and analyzing historical data. With the cloud-based operations center system, users can set alerts and be notified of events such as reaching a specific gas pressure threshold, hitting a minimum liquid level, or encountering certain ambient temperature limits.

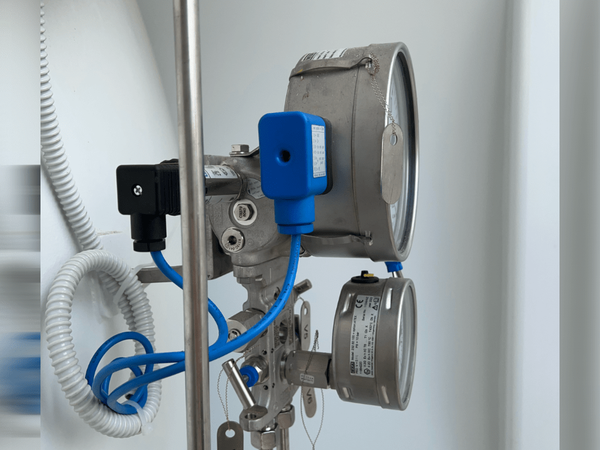

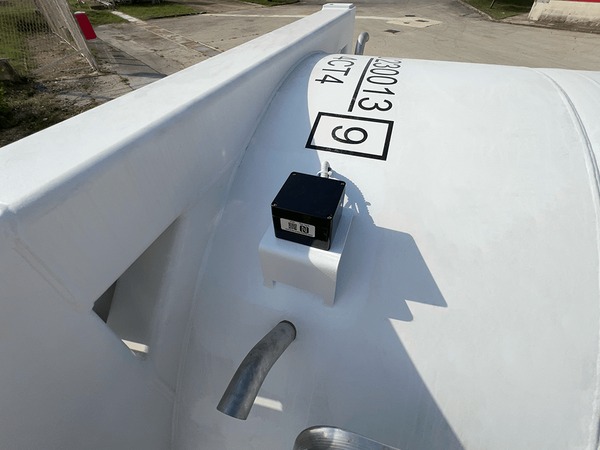

Quantities that can be measured include GPS location are gas pressure, the volume of liquid in the tank, and the tracker's housing temperature (which approximates ambient temperature).

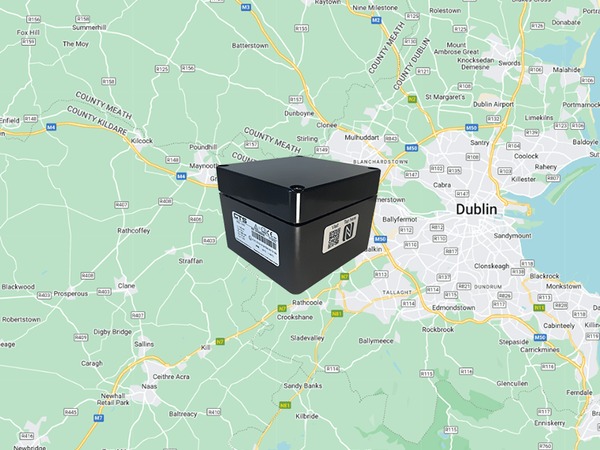

The CTC-1 series GPS trackers are battery-operated devices designed for satellite-based monitoring of the location and condition of gas within Liquefied Natural Gas (LNG) tanks, as well as other "EX" type tanks. Due to its mounting position and proximity to potentially explosive areas, the device is classified as Zone 1 in accordance with Directive 1999/92/EC. It adheres to standards EN IEC 60079-0 (Explosive Atmospheres - Part 0: Equipment - General Requirements) and EN 60079-11 (Explosive Atmospheres - Part 11: Equipment Protection by Intrinsic Safety "i"). Additionally, the device is compliant with the standards outlined in the Radio Equipment Directive (RED).

Technical data for Telemetry

Enviromental

Operating temperature range

-20°C to +55°C

Storage temperature range

-30°C to +60°C

Ingress protection

IP66

Electrical

Battery capacitance

25,5 Ah

Output voltage

15 V (max. 16,5 V)

Satellite transmitter power

19 dBm (max 23 dBm)

Local protocol power

10 dBm (max 12,5 dBm)

Mechanical

Size (HxWxD)

120mm x 122mm x 90mm

Fixing and lid screws

Tamper proof, captive and 316L

Gasket

Silicone (in line with IP66 and IP67)

Entries

2 x M20 threaded entries fitted with NPB certified cable glands in bottom face

Impact resistance

7 N/m

Fire fighting protection system

If you need reliable partner in order to protect your valuable assets in Oil & Gas industry, REKTOR LNG in partnership with ARMING d.o.o. can offer initial study, engineering documentation for execution of whole system of Fire Fighting protection systems, finished products included.

Whenever you must mix water and foam liquid in order to produce Fire fighting foam, we can offer our 35 years’ experience in designing, manufacturing of Foam Protection System, under all current standards (NFPA, UL/FM, ISO, DIN..)

Our offer include delivery of:

  • FOAM MIXING STATIONS (Balance pressure proportioning -BPP systems, Volumetric mixers systems, Electronic mixer, or any other specified by Authority having jurisdiction
  • FOAM DISCARGE COMPONENTS
    - Remote or manual controlled foam/water monitors, on Towers with rotation platforms if requested.
    - Foam branch pipes
    - Foam Sprinkler
  • COOLING SYSTEM – for cooling of the tanks, process..
  • ELECTRONIC PART of the systems
